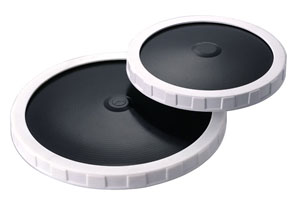

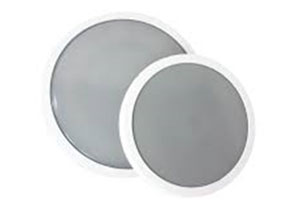

Fine Bubble Disc Diffuser Size – 9"
| Membrane thickness |
mm |
1.8 to 2 |
| Active surface |
Sq. Mtr |
0.0375 |
| Size Of Bubble |
mm |
0.8 – 2.1 |
| Threaded connection |
NPT |
3/4″ |
| Weight |
Kgs |
0.68 |
| Oxygen Utilization Ratio |
% |
30 |
| Hardness (ISO 53505) |
Shore A |
60±5 |
| Slit Quantity |
Nos. |
6600 |
| Tensile strength at break (ASTM 412-92) |
PSI |
>1800 |
| Elongation at break ( ASTM D – 412) |
% |
> 650 |
| Tear resistance (ASTM D624-91) |
N/mm |
>100 |
| Floor Coverage |
% |
2 to 25 |
| Min. operating flow Range |
Cum/Hr |
1 |
| Max. operating flow Range |
Cum/Hr |
7.1 |
| Max Flow Range |
Cum/Hr |
0 – 10 |
| Operating temperature |
Degree |
0 – 85 |
| Operation mode |
Intermittent / Continuous |
| Application |
Municipal & Industrial |
| Materials |
| Membrane |
Silicon |
| Support |
ABS |
| Ring Nut |
ABS |
| Color |
White |
