- Housings are available of various MOCs like SS 304, SS 304 L, SS 316, SS 316 L, which are mirror polished and also of Carbon steel which are sand blasted and epoxy coated.
- High dirt holding capacity of filter bags
- Easy to handle
- Low pressure Drop
- High Filtration Area
- High temperature and high pressure customized designs are also available.
- Flow rate up to 2000 m3/Hr
- Easy to open and replace bags
Features
Technical Specifications

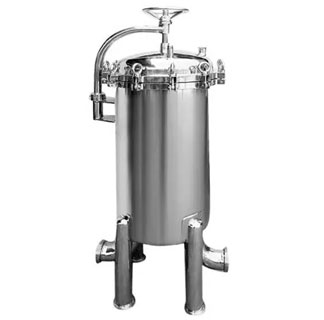

Single Bag Filter System Suitable For
- 4” x 10” Long Filter Bag
- 4” x 17” Long Filter Bag
- 7” x 7” Long Filter Bag
- 7” x 32” Long Filter Bag

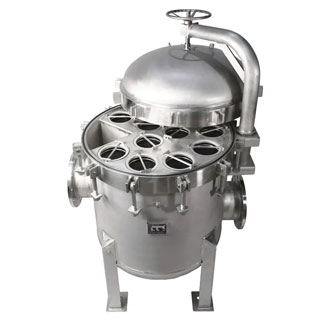

Multiple Bag Filter System Suitable For
- 02 Nos. of 7” x 32” Long Filter Bag
- 03 Nos. of 7” x 32” Long Filter Bag
- 04 Nos. of 7” x 32” Long Filter Bag
- 05 Nos. of 7” x 32” Long Filter Bag
- 06 Nos. of 7” x 32” Long Filter Bag
- 07 Nos. of 7” x 32” Long Filter Bag
- 08 Nos. of 7” x 32” Long Filter Bag
Material Of Construction
- SS 304, SS 304 L, SS 316, SS 316 L
- Carbon Steel, Mild Steel
- Duplex SS, Super Duplex Stainless steel
End Connections
- Flanged
- NPT/BSP threaded
- DIN Standard
- TC Connection
- SMS/Dairy Connection
Applications
- Water applications
- Paints
- Inks
- Edible Oils
- Sugar Syrup
- Polymers
- Varnishes
- Pharmaceuticals
