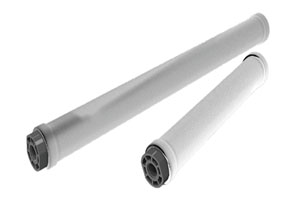

Fine Bubble Tube Diffuser – Silicon
|
65 X 620 |
65 X 1020 |
92 X 1020 |
| Support Pipe Diameter |
mm |
63 |
63 |
90 |
| Perforation Length |
mm |
600 |
1000 |
1000 |
| Membrane thickness |
mm |
1.7 |
1.7 |
1.7 |
| Effective Surface Area |
Sq. mtr |
0.1 |
0.18 |
0.251 |
| Threaded connection |
NPT |
3/4″ FNPT |
3/4″ FNPT |
3/4″ FNPT |
| Weight |
KG |
0.8 |
1.1 |
1.3 |
| Size of Bubble |
mm |
1 to 2 |
1 to 2 |
1 to 2 |
| Hardness |
shore “A” |
55 +/- 5 |
| Tensile strength |
Kg/cm2 |
45 |
| Elongation Break |
% |
235 |
| Tear strength “die-T |
KN/m |
26 |
|
65 X 620 |
65 X 1020 |
92 X 1020 |
| Min. operating flow |
m3/ Hr |
2 |
3 |
5 |
| Max. operating flow |
m3/Hr |
8 |
12 |
22 |
| Operating temperature |
Degree C |
85 |
85 |
85 |
| SOTR |
O2 Kg/kw/hr |
Up to 3 |
Up to 4.21 |
Up to 4.32 |
| Head Loss |
cmWC |
54 |
54 |
31 |
| Operation mode |
Continuous / Intermediate |
| Application |
Industrial / Municipal |
| Materials |
| Membrane |
Silicon low plasticizers |
| Support |
UPVC / PVC |
| Head |
ABS / PP |
| Clamp |
SS304 |
| Nipple |
SS304 |
