UPVC high Flow Filter Housing

  • UPVC high Flow Filter Housing

UPVC high Flow Filter Housing

UPVC High-Flow housings provide an economical alternative to stainless steel. High-Flow systems are designed for high flow rates and high sediment holding capacity. Its range provides filtration solution for a broad variety of fluid applications in the process industry. They are particularly useful for filtering large volume of high viscosity liquids.

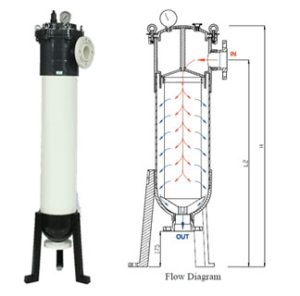

Operation

The liquid which will be purged into the High-Flow Filter Housing from the inlet, then the liquid flow from the inner surface to the outer surface. At last, it will be come into the appointed tank. On reverse, the impurity will be held up in the Cartridge. The filter can be recycled when changed another new Cartridge.

Size of High Flow Cartridge
  • 20” X 6” High Flow Cartridge – 22 to 30 M3 /Hr Flow
  • 40” X 6” High Flow Cartridge – 40 to 50 m3/Hr Flow

Specification

Filter System Suitable For

  • 20” X 6” High Flow Cartridge
  • 40” X 6” High Flow Cartridge

Material Of Construction

  • Housing Sump / Top – UPVC
  • Housing Lock – Stainless Steel Swing Nuts
  • “O”-ring / Gasket-Silicon

End Connections

  • 2.5” Flanged ASA 150 Class.

Max Operating Pressure: 5 Bar

Hydro Test Pressure: 7 Bar

Max Operating Pressure: 5 Bar

Hydro Test Pressure: 7 Bar

Applications

  • Commercial Water System
  • Industrial Process Water
  • Processing Chemicals
  • Paints
  • Petroleum Derivatives
  • Inks
  • Coolants
  • Resins
  • Cutting Oils
  • Varnishes
  • Cleaning Fluids
  • Lacquers
  • Vegetable Oils
  • Pharmaceuticals
  • Edible Oils
  • Sugar Syrup
  • Polymers
  • Plastsols.

Feature

  • UPVC material has good corrosion resistant.
  • The unique seal system makes the filter more safety.
  • It can prevent the Cartridge plunged into the support basket, no inner leak.
  • Good appearance and compact inner construct.
  • High efficiency of filter; quick flow of liquid, big capacity of impurity.
  • High precision, the filter range can be from 0.5-200μm.
  • The price is more competitive
